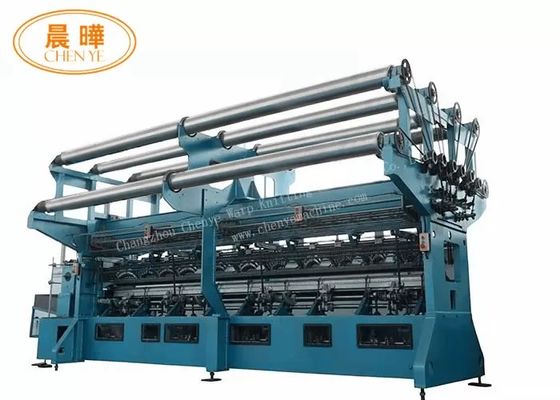

High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing

1セット
MOQ
negotiable
価格
High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品タイプ: 陰の網作成機械
色: オーダーメイド
作業幅: 135" - 260"
スピード: 200~450回転/分
サイズ: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
保証: 1年 (終身技術サポート)
ハイライト:

Made-to-order Color Shade Net Making Machine

,

Oiled Eccentric Gearing Shade Net Making Machine

,

Negative Yarn Let-off System Shade Net Making Machine
基本情報
起源の場所: 中国、江蘇省
ブランド名: Chenye
証明: ISO ,CE, TUV
モデル番号: SRCA
お支払配送条件
パッケージの詳細: 40HQ/Set
受渡し時間: 沈殿物の支払の後の60日
支払条件: L/C、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 1か月あたり25セット
製品の説明
High-Efficiency Crop Shield With Premium Sun Shade Net
Product Description
  • Number of bar: 2~8
  • Working Width: 135", 150", 170", 220", 240", 260"
  • Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
  • Feature: The machine is equipped with oiled eccentric gearing and the negative yarn let-off system
  • Needle Type: Block latch needle, individual latch needle or Compound needle
  • Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size(L*W*H) Weight(Kg) Power(KW) Speed(rpm)
SRCA-135 4300×2200×2700 4700 3 200-530
SRCA-150 4900×2200×2700 5000 3 200-530
SRCA-180 6100×2200×2700 7500 5.5 200-530
SRCA-220 7300×2200×2700 9000 5.5 200-530
SRCA-260 8200×2200×2700 11000 7.5 200-480
SRCA-340 10300×2200×2700 14000 11 200-450
Application
Shade nets are widely used in agriculture, horticulture, greenhouses, and construction sites. In agriculture, they reduce direct sunlight, regulate light intensity, and protect crops from excessive sun exposure. They help maintain soil moisture, reduce water evaporation, and improve growing environment stability. In horticulture and greenhouses, shade nets effectively regulate temperature and humidity. On construction sites, they provide shelter and reduce sun exposure risks.
Purpose
  • Reduce direct sunlight and protect crops, plants, and people from intense sun exposure
  • Regulate temperature and light intensity, creating optimal growth or work environments
  • Reduce water evaporation and maintain soil moisture to improve crop growth rate and quality
  • Prevent excessive heat and UV damage during high-temperature seasons
Product Images
High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 0 High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 1 High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 2 High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 3
Support and Services
Our company provides comprehensive technical support and service for our Shading Net Making Machine, including:
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
We offer on-site service for complex repairs and maintenance with our team of qualified technicians.
High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 4 High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 5
Packing and Shipping
We ensure the safety of goods during packing and shipping.
High-Efficiency Shade Net Making Machine with Made-to-order Color and Oiled Eccentric Gearing 6
Shading Net Making Machine FAQ
1. What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
2. How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger lines may need several thousand square meters. Space must accommodate machines, raw materials, and finished products storage.
3. How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
4. Are the machines customizable for different net specifications?
Yes, modern machines can be adjusted to produce nets of various sizes, mesh configurations, and materials to meet specific shading requirements.
5. What types of shading nets material can be made with these machines?
Primary material is HDPE, with some nets using AL and PET materials.
6. Are there any special skills required to operate the machine?
Training is recommended for optimal performance. Manufacturers provide training sessions and manuals covering setup, operation, and maintenance.
